3520 HST John Deere Compact Tractor For Sale
***PLEASE CONTACT US FOR A DELIVERY PRICE***


NO VAT

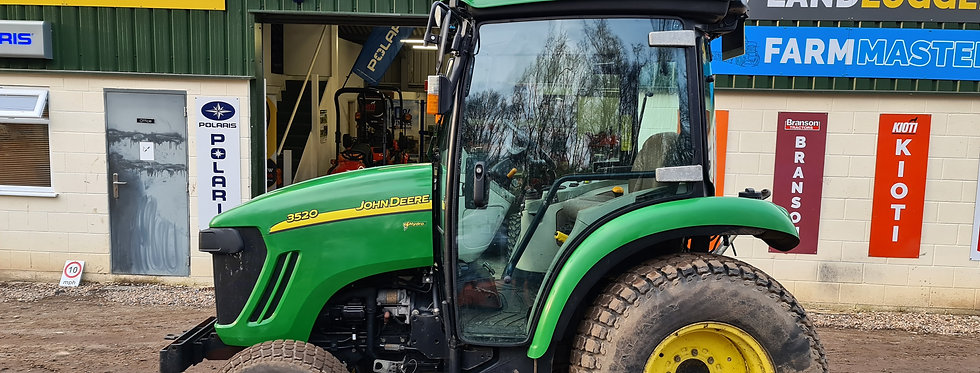

John Deer compact tractor for sale 3520 HST cab.

  • 1188 hours
  • Very good condition
  • Power Steering
  • HST Transmission
  • Cab
  • Road registered

3520 Utility Tractor
  • 27.3 kW (37.1 hp) Yanmar engine
  • Auto HST, PowrReverser and eHydro transmission opt

  • This tractor is in good condition as you can see the pictures speak for themselves.
  • This John Deere compact tractor offers a substantial saving on buying a new tractor.
  • The tractor is a Large compact tractor delivering a powerful 37.1HP and as a 3 cylinder fuel efficient diesel engine.
  • The tractor has High and Low range gear selection with 3 forward gears and 1 reverse gear in Low and 3 forward gears and 1 reverse gear in High.
  • The tractor has 2WD and 4WD selection.
  • Powe Steering
  • 1 X S/A Spool Valve
  • Standard UK C/W rear PTO, and hydraulic lift. This Tractor can power many different types of implements.
  • 3 point linkage.
  • Front weight plate.
  • Foldable Roll Bar.
  • The tractor is in very good condition body work and mechanically.
  • All electrics work including the lights.
  • The John Deere compact tractor has been fully serviced with new oils and filters on the hydraulics, fuel and oil. New 40% anti freeze so protected for the harsh winter.

3520 HST John Deere Compact Tractor For Sale

£14,995.00Price

  • Engine

    Manufacturer Yanmar 3TNV84T Engine power (gross) 97/68/EC rated power Aspira.on Turbo Cylinders/displacement 1.5 L/3 / 91.5 cu in. Cylinder liners Cast-in-block Bore and stroke 84 x 90 mm/33 x 3.54 in. Compression ra.o 18:1 Lubrica.on Pressurized Cooling system Water pump Air cleaner Dry type with safety element and air restric.on indicator Engine torque at rated speed 96.4 Nm/71.1 lb-\ Fuel tank capacity Open-51.1; Cab-44.7 L/Open-13.5; Cab-11.8 U.S. gal.

  • Transmission

    Standard transmission; forward/reverse PowrReverser; 12F/12R Op.onal transmission; forward/reverse eHydro - 3 Range Le\-hand reverser Yes Final drive Helical gear Brakes Wet disk Steering Power steering Clutch, wet/dry Wet Clutch disk diameter wet clutch Two wet mul.-disk Axle capacity Front - 720-1450 kg/1587-3197 lb Rear - 2400 kg/5292 lb Creeper No / Op.onal SpeedMatch Cruise control Op.onal Differen.al lock Yes

  • Hydraulics

    Type Open Center Pump rated output 52.5 L/min/13.9 gpm Steering - 20.0 L/min/5.3 gpm Implement - 32.5 L/min/8.6 gpm Pump type Dual gear Maximum opera.ng pressure 2500 psi Dra\ control sensing Posi.on control Remote control valves available

  • 3 Point Hitch

    Category Category I Li\ capacity, 24-in. behind link arms 999 kg/2200 lb POWER TAKE-OFF (PTO) Standard Rear @ 540 RPM Op.onal Mid @ 2100 RPM Control Independent Clutch Mul.-disk, wet Brake (for mid and rear PTO) Mul.-disk, wet

  • Cab

    Compliance Complies with OSHA, SAE and CSA standards for roll-over protec.on Visibility 360 degree (angle) Air condi.oning, temperature differen.al Yes, up to 30 degrees Doors 2 Noise ra.ng 80 Seat equipment Scissor-link

  • Dimensions

    Wheelbase 1727 mm/68 in. Turning radius with brakes 2.68 m/8.8 \ Turning radius without brakes 2.8 m/9.2 \ Approximate shipping weight (open-sta.on; cab) Op en-1316; Cab-1619 kg Open-2900; Cab-3570 lb
