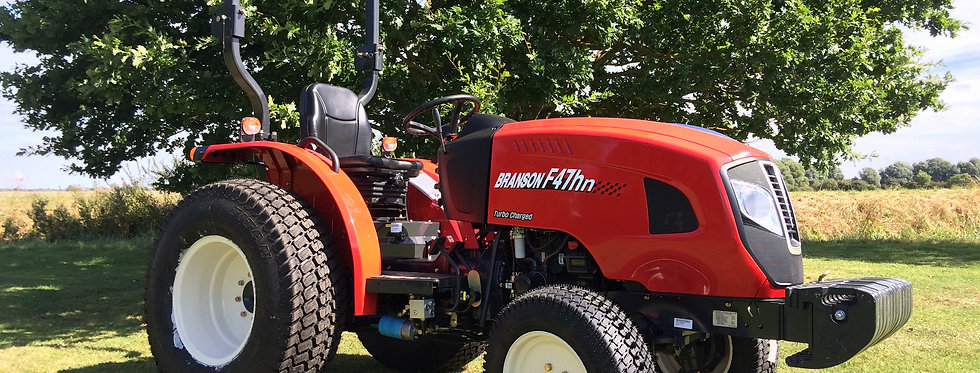

F47R Branson Tractors
Prices Ex VAT and Delivery.

Product Details

Quick Specs:
  • Power: 45HP
  • Platform: ROPS
  • Auxillary double acting hydraullic services: 1
  • PTO speeds: 540/750
  • 3 point linkage lift at ball ends: 1500kg

  • Branson tractors are 4 wheel drive, and they have been developed with a dual power direction, hydrostatic, steering cylinder.
  • Branson Tractors don't use a steering drag link, which is a significant advantage for tight 47 degree turns and low steering effort.
  • Branson Tractors Three-point hitches are strong and balanced.
  • Steering this compact tractor is smooth and easy, while all other hydraulic requirements can operate at their own performance requirement, simultaneously.
  • Dual hydraulic pumps: hydrostatic steering has its own pumps, the tractor loader operates quicker and smoother. lt is safer for operators as there is no loss of steering control when running both workload and steering duties.
  • The eco-friendly compact tractor engine is genuine Branson built. It is rated at 2,600 RPM operation.
  • Branson Tractors are quiet and have low fuel consumption.
  • Branson Tractors “long stroke” design produces maximum torque at a lower operating rate than many of their competitors.
  • Branson Tractors transmission gives 12 speeds forward and 12 speeds in reverse.
  • Independent 560 RPM PT0 is a standard feature on F Series Branson Tractors.

To speak with us about our Branson Tractor package deals and for the latest Branson Tractor prices, please call Beckside Machinery on 01673 828 965.

F47R Branson Tractors

£16,285.00Price

  • Branson Tractors UK series F47R Specifications

    Engine HP (kW) @ Rated RPM: 45 (33) @ 2600

    PTO HP @ Rated RPM: 40 (30.7)

    Drive System: 4 Wheel Drive

    Max.Forward Speed (Km@RPM): 26.4 @ 2850

    Min.Forward Speed (Km@RPM): 1.3 @ 2850

    Engine

    • Make: A1700T3
    • Type: Vertical 3 Cycle,Water Cooled, Diesel
    • Displacement (cc): 1714
    • Aspiration: Turbocharged
    • Combustion System: Swirl Chamber

    Air Cleaner: Dry, Element

    Transmission

    • Main Shift: SynchroMesh
    • Reverse Method: SynchroShuttle
    • Gear Shift: 12F/12R
    • On-the-Go Shifting (Yes/ No/ Partial): Main: Yes. Range: No
    • Clutch: Dry Single Plate

    Brake: Wet, Multidisc

    Fuel System: 27

    PTO: Rear PTO : 560 / 780 RPM(Independent Type, CW, 6 Spline shaft)Front PTO : Attachable

    Hydraulics

    • Main (lpm): 33.5
    • Steering lpm(L/min):18

    SCV: NA / 2 (Option : 4port)

    3-Point Hitch

    • Hitch Category: CAT I
    • Hitch Lift Capacity on Ball Ends (kg): 1500
    • Hitch Lift Capacity Measured 24” (610mm) Behind Ball Ends (kg): 1100
    • Control Type: Draft/ Position

    Steering

    • Category: Power Assisted Hydrostatic
    • Turning Degree: 56°
    • Adjustment: N / A

    Electrics:12V / 50Ah

    Tires: F : 7-16, R : 11.2-24 / F : 8-16, R : 12.4-24IND.: 10-16.5 / 420 x 70R-24

    Dimensions

    • Overall Length (mm) (Front weight - 3PL): 3429(With Front Weight)
    • Overall Width (mm): 1450
    • Overall Height (mm): 2546
    • Wheelbase: 1670
    • Ground Clearance (mm): 335
    • Weight (kg): 1200 (With Front Weight)

    Options: Front Weight (17kg x 6)
