- Cab
- Big Indistrial Tyres
- Pick-up Hitch
- 2 Double Spool Valves
- Good Working Condition
This TNS series was the more luxurious version of the standard TN series and had a standard SuperSteer front axle which allowed a very small turning circle. New Holland TN55 S uses a 2.9-liter three cylinder Iveco engine of 50 hp. Basic transmission is a synchronized 16 + 16 shuttle command. The bottom of the cabin is low so that the total height is only 230 cm. Instrumentation is largely digital.

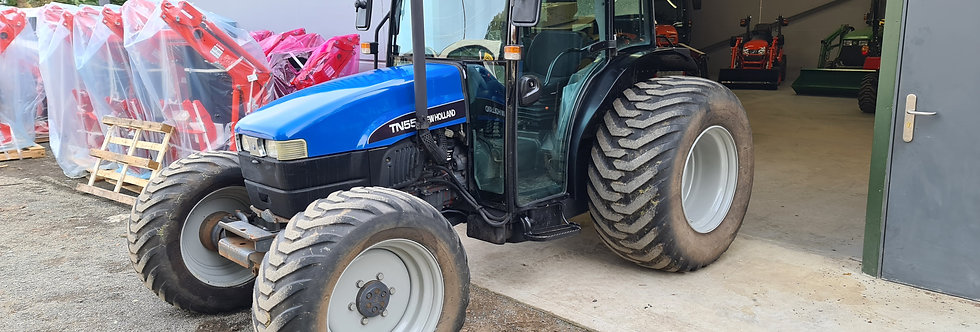

TN55S New Holland Compact Tractor
£11,995.00Price
Specifications
Engine:
Brand: Iveco Model: 8035.05 Type: 4 stroke Direct injection Engine cooled: water cooled Cylinders: 3 Aspiration: Natural Power: Gross: 37.00Kw / 49.62Hp Power at: 2200rpm Torque: Maximum (DIN): 200.00Nm / 148.00lb-ft Max. torque at: 1400rpm Bore: 104.00mm / 4.09Inch Stroke: 115.00mm / 4.53Inch Displacement: 2,930cm³ / 179ci³ Fuel: diesel Electrical system:
Power source: System: 12V Hydraulic system:
Hydraulic pump: Main pump: 47.00L/m / 12.42gpm Hydraulic pressure: Working hydraulics: 190.00Bar / 19.00Mpa Transmission & speed:
Make: New Holland Transmission: Mechanical Gearbox: Shuttle Command Reversing gear: Mechanical Clutch: Hydraulic wet disc Powertrain: 4 Wheel Drive Transmission: Forward gears: 16 Reverse gears: 16 Travel speed: Maximum speed: 30.00km/h / 18.64mph Optional transmissie: Model: Spilt Command Gears: with creeper 44x16 2e optional transmissie: Model: Powershuttle Forward gears: 16 Reverse gears: 16 3e optional transmissie: Model: Dual Command Type: 2 speed PowerShift Gears: with creeper 44x16 Forward gears: 32 Reverse gears: 16 Power takeoff: PTO speed: 540/750rpm Service refill capacities:
Fuel tank: 75.00L / 19.82US gal Dimensions:
Transport dimensions: Length: 4,300mm / 169Inch Heigth: 2,300mm / 91Inch Height dimensions: Cabine: Height: 2,300mm / 91Inch Wheels & tyres: Tire size: Front: 320/70 R20 Rear: 420/70 R28 Wheelbase: Length: 2,380.00mm / 93.70Inch Steering: Steering system: Hydrostatic Turning radius: Outside of tire: 3,420mm / 135Inch Performance:
Lifting capacity: Lift capacity rear: 2,670kg / 5,874Lbs Weight:
Operating weight: Operating weight: 2,845kg / 6,259Lbs Sound levels:
Interior Cab: 78dB(A) Relevant Blog Posts
