wessex proline

Please call us on 01673 828 965 for prices.

Wessex Proline RMX Series

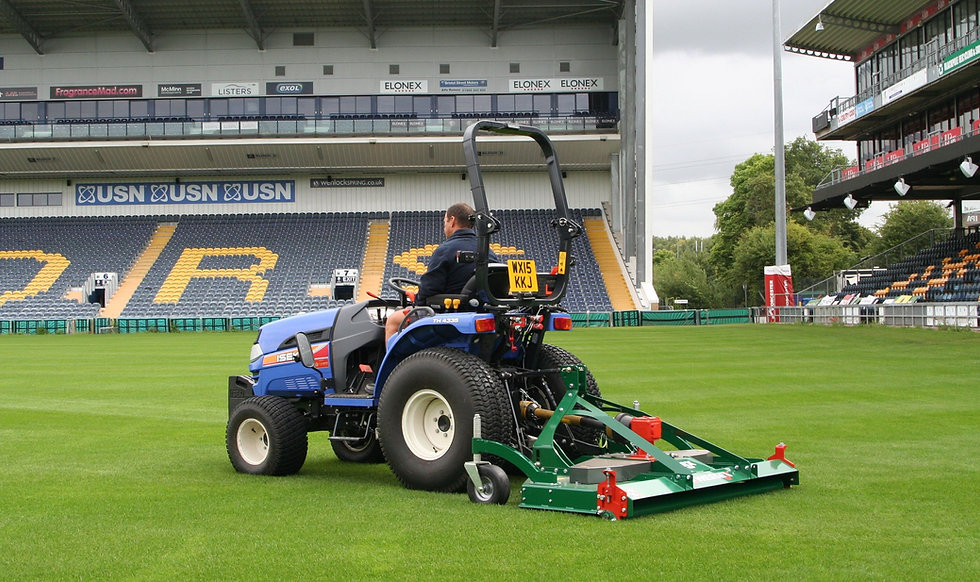

The Wessex International RMX PROLINE TRACTOR MOUNTED ROTARY MOWERS heralded a new dimension of sports and amenity turf maintenance –A cost effective way of professional turf mowing.



No ordinary mower…

The Wessex ProLine RMX roller mower is not to be mixed up with a rotary topper or finishing mower. With full diameter rollers front and rear, exactness blades and an unusually high blade tip speed, a premium cut character with a professional lined effect is easily achieved.



Conventional cylinder mowers incur great costs!

Traditionally cylinder mowers were the only means to achieve a premium cut. The yearly costs of cylinder regrinds, replacement bottom blades, regular bed knife adjustments and hydraulic oil filters were an acceptable overhead. With the Wessex RMX ProLine roller mower, this has transformed!



“IT SEEMS WESSEX HAVE THOUGHT OF IT ALL” – SAYS HORTICULTURE WEEK MAGAZINE REPORTER



  • QUARTER TURN GUARD FIXINGS – Time

  • conserving for ease of sustenance.

  • FLOATING LINKAGE POINTS – Enables ground

  • contours to be tracked accurately.

  • FULL WIDTH ROLLERS – Follows ground

  • contours exactly, leaving a professional lined

  • effect on the turf.

  • 5MM HEAVY PRESSED STEEL DECK – Fundamental

  • strength for long service period. Sand blasted and powder coated for supreme durability.

  • RIGID BELT TENSIONERS – Guarantees constant

  • power transmission. No bounce like a spring

  • tensioner.

  • EASY CUTTING HEIGHT ADJUSTMENT

  • – Singular spanner operation provides infinite cutting height variation. Greasable threads are included beneath the deck to shield from debris.

  • TWIN BELT DRIVE – For greatest power

  • transmission to handle larger masses of grass.

  • FINAL BELT DECK DRIVE – For latest driveline

  • shock safeguard.

  • HEAVY DUTY BEVEL GEARBOX – For smooth

  • and noiseless operation

  • ROLLER SCRAPER – Keeps rollers free of rubble

  • build-up.

  • ROTOR BAFFLES – Guarantee even grass distribution

  • across the entire width of the compact tractor attachment.

  • SINGLE BLADE BOLT FIXINGS – Are self

  • tightening and serve as shock overload security.

  • ANTI-SCALP DISCS – Discharge scalping and

  • protect the turf when slicing very low.

  • TWIN TAPERED ROLLER BEARINGS

  • – Guarantee a long service life, as they are created to

  • withstand side-thrust when turning while mowing.

  • CAST ROLLER END CAPS – Save maintenance

  • costs, as parts can be replaced

  • separately.

  • FRICTION WELDED CUTTER SPINDLES

  • – Run in large cast housing for best durability.

  • GOLDCUT BLADES – Zone tempered precision

  • blades spin at 96m/sec for an optium cut quality at a fast

  • forward speed. Knives pivot to decrease stone damage,

  • and have an upswing to generate suction effect.

The Wessex PROLINE CRX SERIES

MultiCut mowers are indeed at the leading

edge of turf mowing technology, providing

a cut character equivalent to a cylinder mower on

sports turf at a portion of the investment

price and maintenance expenses.



Emphasizing a blade tip speed on a level with the long-proven RMX series expert roller mowers to give that equivalent superb cut class, the CRX decks also have included the Wessex ‘TornadoVent’ air-flow system guaranteeing optimum performance in longer grass as well as fine turf. An extra uncommon feature of the CRX series is the choice of the 3 distinct wheel / roller combinations. 4 wheels give highest manoeuvrability in restricted spaces and around obstacles, whilst 2 rollers are favoured when in wide open spaces. The unique Wessex combination mower provides the best of both worlds, with castor wheels at the port to reduce turf

scuffing while turning, and a rear roller for the sought-after striped effect on the turf. The CRX rigorous decks are also possible for front mounting onto a conventional cat 1, front linkage, subject to the compact tractors PTO speed and direction. The CRX rigid decks are ready in 1.5m, 1.8m & 2.4m working widths to suit compact tractors from 18hp+.



Features & Benefits

  • ANTI-SCALP ROLLERS – Blocks scalping

  • TORNADO-VENTS – Specific air-flow for premium

  • cut and clipping dispersal

  • ALL SPINDLES GREASABLE ABOVE THE

  • DECK – Efficiency of maintenance

  • SIMPLE BELT ADJUSTMENT – Efficiency of maintenance

  • FINAL BELT DECK DRIVE – For latest driveline

  • shock protection

  • WHEEL HEIGHT ADJUSTMENT BY

  • GREASELESS REMOVABLE BUSHES

  • ROLLERS ADJUSTED BY SIMPLE SCREWTHREAD

  • MECHANISM – Simple height adjustment

  • PUNCTURE PROOF DECK TYRES – No downtime

  • HIGH BLADE TIP SPEED – Quality finish at fast

  • forward speeds

  • BAFFLES AROUND BLADES – Level grass distribution

  • CHOICE OF WHEELS OR ROLLERS – 3 modes,

  • your selection

MULTI-FUNCTIONAL COLLECTORS



Whether the demand is for a flail collector to cut and

consolidate on an out of season wildflower meadow, an

expert scarifier for application on a sports pitch, or a

sweeper collector for removing autumn leaves from fields and parkland, the STC-120/180 is the perfect compact tractor attachment.



Ready in 1.2m and 1.8m working widths, the STC collector, is an authentic, all-year-round device for the maintenance of public parks, extensive amenity areas,

sports turf and private properties.



Key Features & Benefits

  • MULTIFUNCTIONAL – Use one device for

  • sweeping, scarifying and flail mowing.

  • ALL YEAR ROUND MAINTENANCE

  • MACHINE – Decreased capital outlay.

  • LARGE CAPACITY HOPPER – For increased

  • workrates.

  • SEMI MOUNTED TO THE TRACTOR –

  • High capacity device on a small tractor, diminishes

  • running costs.

  • HYDRAULIC TIP – Efficiency of emptying.

  • WIDE TURF TYRES – Minimum ground

  • compaction.

  • ADJUSTABLE DRAWBAR – Perfect for various

  • size tractors.

  • RUNS ON ITS OWN FOUR WHEELS – Obeys ground contours precisely.

  • SIMPLE HEIGHT ADJUSTMENT – Efficiency of

  • operation.

  • PREMIUM POWDER-COAT PAINT

  • FINISH – Maximum sturdiness.

Wessex Proline FRX

Diminished funds and less frequent mowing cycles indicate that the local authorities require a tractor attachment that will cut and mulch lush grass without disorderly swathing, as with rotary mowers. The Wessex FRX-150/ FRX-150-H (hydraulic version) out front flail mowers do exactly that!



Features & Benefits

  • AERODYNAMIC FLAILS – Least power

  • consumption.

  • FULL WIDTH ANTI-SCALP ROLLER

  • – No hideous scalping.

  • INTEGRAL ROLLER BEARINGS – Preserved

  • for long service life.

  • SIMPLE AND POSITIVE HEIGHT

  • ADJUSTMENT – Efficiency of operation.

  • PUNCTURE PROOF TYRES – Low maintenance.

  • TWIN DRIVE BELT TRANSMISSION

  • – Handles dense vegetation.

  • FULLY GUARDED TO HSE SPECIFICATIONS

  • – Matches local authority requirements.

  • CONTIFLOW DECK DESIGN – Low profile deck

  • layout follows the path of the flails at a consistent

  • distance, increasing the suction impact and improving

  • mulching performance.

  • FLOATING LINKAGE – Great ground contour

  • following and a bountiful lift height which is perfect for

  • kerb clearance and trailer ramps etc.

  • WIDE OUTLET – Greatest performance in

  • the long grass.

  • HARDENED STEEL STONE GUARDS

  • – Protection in public areas.

  • RIGHT ANGLE DRIVE GEARBOX OR

  • HYDRAULIC MOTOR – Smooth and quiet

  • performance.

  • ROTOR BEARING GUARDS – Maintained for

  • long service life.

  • ADJUSTABLE SIDE SKIDS WITH

  • REMOVABLE WEAR-SHOES – Cheap maintenance costs.
